Teckentrup roller shutters "XXL"

Teckentrup GmbH & Co. KG

Description

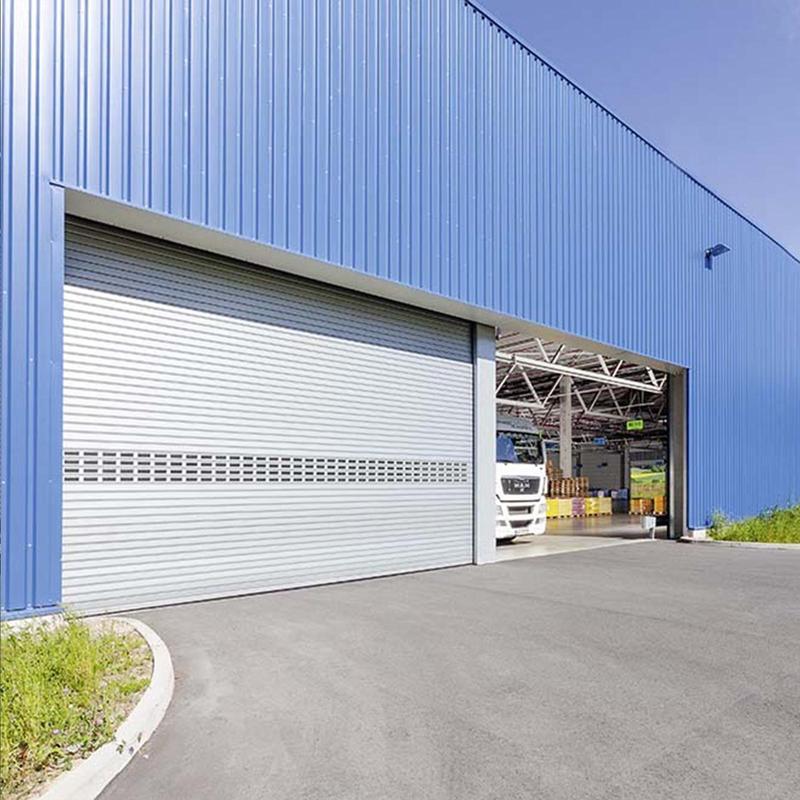

Double roller shutters consist of at least two adjacent gates with a height of up to 6 m, in which an approximately 50 cm wide central support made of galvanized steel takes over the lateral guidance. Thanks to the special running rail system of our XXL roller shutters, the unlocked centre post can be easily pushed to the edge manually. Both gates are opened and the exit can be passed without much manoeuvring. To avoid accidental lowering of the gates, they cannot be moved until the post is firmly locked. This is detected by a sensor.

☛ B<a href="https://www.teckentrup.biz/fileadmin/user_upload/teckentrup/Downloadcenter/01_Broschueren_DE/Broschuere_Rolltore.pdf" target="_blank">roschüre

More Over


Product features:
  • Single gates up to 18 metres wide
  • Double gates up to 36 metres wide
Installation in:

  • Masonry min. 120 mm
  • Concrete min. 150 mm
  • Steel
  • Aerated concrete min. 200 mm (only with steel edging)
  • Wood min. 240 mm

☛ LV-Text

Technical Information


Movable support:
  • Welded steel profiles according to static requirements
  • Primed (in dark grey tone)
  • Double locking upwards and downwards via 4 pieces of 35 mm steel bolts
  • Anchoring in prepared steel plates
  • Asymmetrical pitch possible
  • Double stop damping in the parking / anchoring area
  • Exterior clad with galvanized sheet
  • steelDouble safety switch for sensing the door movement
Size range:
  • Standard construction dimensions:
  • LDB = door width (TB) = min. 2 x 1000 mm
  • LDB = door width (TB) = max. 2 x 18000 mm
  • LDH = door height (TH) = min. 2500 mm
  • LDH = door height (TH) = max. 6000 mm
  • Multiple doors also possible (e.g. in 3 x 18000 mm, 4 x 18000 mm, etc.)
Features Double gates:
  • Can be opened independently of each other
  • Asymmetrical division possible
  • Separate drives
  • Central supports with stop damping, movable
Gate armour:

Gate armour, consisting of galvanised steel profiles that are pushed into each other like a hinge.

Surface:
  • Profiles made of double-walled steel, pitch 95 mm
  • Surface galvanized steel or steel strip coated
Window cutouts:

Glazing made of plastic, crystal clear 150 mm x 55 mm

Drives:
  • Slip-on drive with integrated safety gear
  • Chain drive with separate safety gear and electr. Forced disconnection
  • Three-phase voltage 400 V, 50 Hz, 60 % ED, protection class IP 54 with emergency hand crank, TÜV tested
  • Other special voltages, protection classes or emergency actuations on request
Controls:
  • For plug-on and chain drives, pre-wired ready for plug-in and with CEE plug in the basic equipment and as a dead man's control , can be easily upgraded with:
  • Self-holding "CLOSED" in conjunction with a closing edge safety
    • device
  • Radio remote control
  • Automatic inlet (with traffic lights)
  • Accessories for controls:
  • Automatic inlet (with traffic lights), additional light barrier recommended
  • Traffic light control
  • Digital induction loop
  • Without closing edge protection:
  • In the basic version, control voltage 24 V safety extra-low voltage, protection class IP 65, "gate closed" in dead man's switch (continuous pressure), push buttons "open-stop-closed"
  • With locking edge protection:
  • control with self-monitoring closing edge protection, control voltage 24 V safety extra-low voltage, protection class IP 65, "gate closed" and "gate open" in self-holding with push buttons "open-stop-closed"
Special equipment:
  • fixed side panel with built-in door
  • Rotatable side panel with built-in door
  • Armour cladding made of:
  • galvanised sheet
  • steel natural aluminiumOther designs on request:
  • Inclined floor profiles, adapted to the floor
  • Side or roof mounts
