Description

The aesthetic and economical aluminium roof system for quick and easy installation without special tools. AluDeck is suitable for new construction and renovation as well as for all load-bearing structures.

  • No special tools required for installation
  • Particularly economical due to simple and quick installation
  • Versatile application possibilities and roof structures

More Over

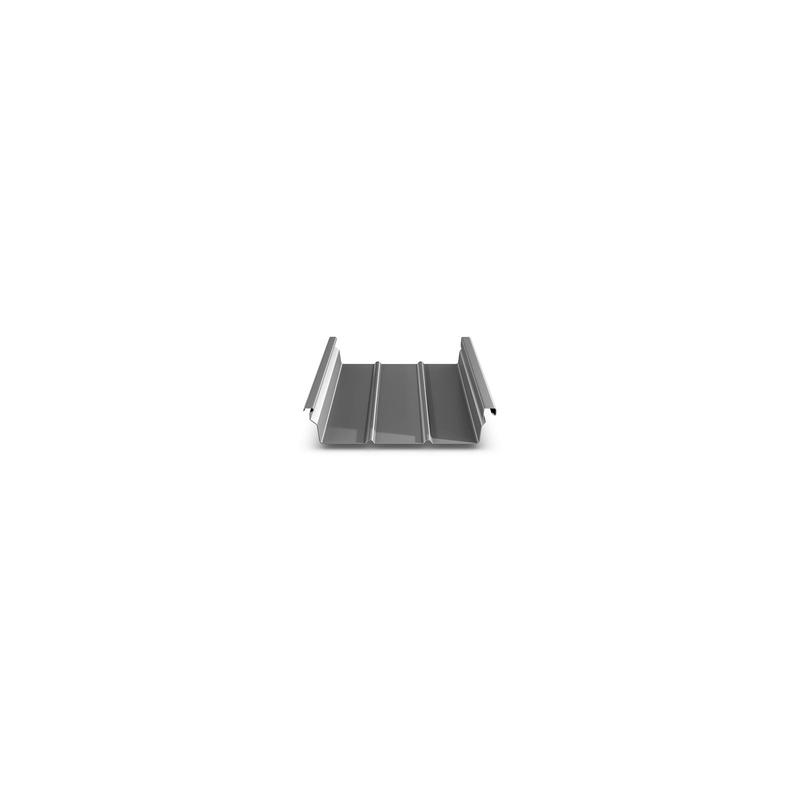

The AluDeck roof and wall system is a profile variant of the classic standing seam system and is characterised in particular by a special profile geometry of the individual profile panels. The installation is carried out by hooking and clamping the profile sheets with the bracket previously mounted on the substructure, creating a force-fit connection. The advantage: no special tool is required for flanging the folds. This makes the roof and wall system particularly efficient and economical thanks to fast installation times.

Product data sheets of the different versions:

Product data sheet 65/305

Product data sheet 65/400

Technical Information

  • Material: Aluminium - EN AW 3005
  • Surface: Aluminium natural bright roll, aluminium natural Stucco design
  • Surface
  • coating: Coating (polyester, PVdF, HDP), anodizing
  • Back coating: protective varnish, anti-drip fleece, acoustic fleece
  • Length: 500 to 13,000 mm available ex works (special lengths on request)
  • Rounding: possible (concave/ convex)
  • Perforation: Rv 3-5, Rv 5-8 (other hole patterns on request)
  • Material Holder: Aluminium
  • Approval Number: Z-14.1-172
  • Building Material Class: A1
