BauderPIR FA

Paul Bauder GmbH & Co. KG

Description

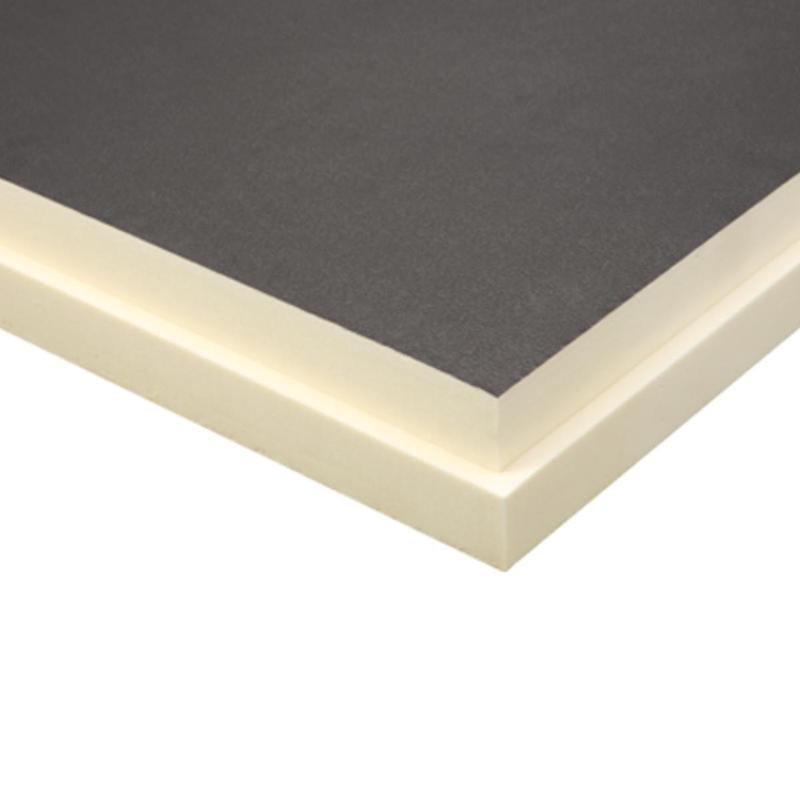

Polyurethane rigid foam Thermal insulation with aluminium lamination on both sides. BauderPIR FA is used as thermal insulation with particularly low thermal conductivity on the flat roof that is used and not

in use.

Polyurethane rigid foam Thermal insulation with aluminium lamination on both sides. BauderPIR FA is used as thermal insulation with particularly low thermal conductivity on the flat roof that is used and not

in use.

Polyurethane rigid foam Thermal insulation with aluminium lamination on both sides. BauderPIR FA is used as thermal insulation with particularly low thermal conductivity on the flat roof that is used and not

in use.

More Over

  • Areas of application: large industrial flat roofs, fast processing
  • Description: Flat roof insulation boards with aluminium top layer on both sides
  • Design: flat panels with rebate
  • Areas of application: large industrial flat roofs, fast processing
  • Description: Flat roof insulation boards with aluminium top layer on both sides
  • Design: flat panels with rebate
  • Areas of application: large industrial flat roofs, fast processing
  • Description: Flat roof insulation boards with aluminium top layer on both sides
  • Design: flat panels with rebate

Technical Information

  • Panel size 2400 x 1200 mm (installation dimensions: 2385 x 1185 mm)
  • Reaction to fire Class E according to DIN EN 13501-1 B2 according to DIN 4102-1
  • Compressive strengthโ‰ฅ120 kPa (โ‰ฅ0.12 N/mm2)
  • Thermal conductivity (D) 0.023
  • Thermal conductivity (EU) 0.022
  • PIR index >250
  • Application type DAA ie; DEO i.e
  • .
  • thicknesses from 60 - 240 mm
  • Panel size 2400 x 1200 mm (installation dimensions: 2385 x 1185 mm)
  • Reaction to fire Class E according to DIN EN 13501-1 B2 according to DIN 4102-1
  • Compressive strengthโ‰ฅ120 kPa (โ‰ฅ0.12 N/mm2)
  • Thermal conductivity (D) 0.023
  • Thermal conductivity (EU) 0.022
  • PIR index >250
  • Application type DAA ie; DEO i.e
  • .
  • thicknesses from 60 - 240 mm
  • Panel size 2400 x 1200 mm (installation dimensions: 2385 x 1185 mm)
  • Reaction to fire Class E according to DIN EN 13501-1 B2 according to DIN 4102-1
  • Compressive strengthโ‰ฅ120 kPa (โ‰ฅ0.12 N/mm2)
  • Thermal conductivity (D) 0.023
  • Thermal conductivity (EU) 0.022
  • PIR index >250
  • Application type DAA ie; DEO i.e
  • .
  • thicknesses from 60 - 240 mm
  • Panel size 2400 x 1200 mm (installation dimensions: 2385 x 1185 mm)
  • Reaction to fire Class E according to DIN EN 13501-1 B2 according to DIN 4102-1
  • Compressive strengthโ‰ฅ120 kPa (โ‰ฅ0.12 N/mm2)
  • Thermal conductivity (D) 0.023
  • Thermal conductivity (EU) 0.022
  • PIR index >250
  • Application type DAA ie; DEO i.e
  • .
  • thicknesses from 60 - 240 mm
  • Panel size 2400 x 1200 mm (installation dimensions: 2385 x 1185 mm)
  • Reaction to fire Class E according to DIN EN 13501-1 B2 according to DIN 4102-1
  • Compressive strengthโ‰ฅ120 kPa (โ‰ฅ0.12 N/mm2)
  • Thermal conductivity (D) 0.023
  • Thermal conductivity (EU) 0.022
  • PIR index >250
  • Application type DAA ie; DEO i.e
  • .
  • thicknesses from 60 - 240 mm
